These tests are crucial for diagnosing, monitoring, and managing respiratory conditions such as asthma, COPD, and restrictive lung diseases. A solid grasp of PFT concepts is necessary for making accurate clinical decisions and ensuring effective patient care.
In this guide, we’ll share essential tips and strategies to help you navigate the PFT section of the TMC Exam with confidence, moving you one step closer to earning your RRT credentials.
Take our free course to learn essential tips, insights, and strategies to pass the TMC Exam on your first (or next) attempt.
PFT Tips for the TMC Exam
- Understand the basics
- Know the normal values
- Use the Lung Box to your advantage
- Understand flow-volume loops
- Understand the FEV1/FVC ratio
Watch this video or keep reading to learn essential tips and tricks for mastering the PFT section of the TMC Exam.
1. Understand the Basics
Pulmonary function testing (PFT) is a key component of assessing lung function and diagnosing various respiratory conditions. For the TMC Exam, you can expect several questions focused on PFTs, so mastering the basics is crucial for success.
Here is an overview of the essential PFT tests and their clinical significance.
- Peak Expiratory Flow Rate (PEFR): Measures the maximum speed of exhalation and determines if an obstructive disease (e.g., asthma) is reversible with bronchodilator therapy.
- Maximum Inspiratory Pressure (MIP): Measures the negative inspiratory force a patient can generate. It assesses respiratory muscle strength and is a key indicator of a patient’s readiness to wean from mechanical ventilation.
- Vital Capacity (VC): The total volume of air a patient can exhale after a complete inhalation. It is used to evaluate the overall lung function and identify restrictive lung diseases.
- Spirometry: A common test that measures lung volumes and flow rates. It helps determine a patient’s tidal volume, VC, and FEV1. Used to diagnose and monitor both obstructive and restrictive lung diseases.
- Flow-Volume Loop: A graphical representation of the patient’s forced vital capacity (FVC) maneuver, showing both inspiratory and expiratory flows. It is useful for identifying upper airway obstructions, such as vocal cord dysfunction or tracheal stenosis.
- Body Plethysmograph (Body Box): Measures functional residual capacity (FRC), residual volume (RV), and total lung capacity (TLC). It provides the most accurate measurement of lung volumes, especially in patients with obstructive lung diseases.
- Methacholine Challenge Test: Uses methacholine to provoke bronchoconstriction and helps diagnose asthma by assessing airway hyperactivity.
- Maximum Voluntary Ventilation (MVV): Measures the total volume of air a patient can inhale and exhale in a short period of time (e.g., 12–15 seconds). It assesses overall pulmonary function and is often used to evaluate the presence and severity of obstructive lung diseases.
- Nitrogen Washout Test: Measures FRC by calculating how much nitrogen a patient exhales over a set period. It provides an indirect measurement of lung volumes and helps detect ventilation-perfusion mismatches.
- Helium Dilution Test: Measures FRC using a known concentration of helium and assesses lung volumes in patients with suspected restrictive or obstructive diseases.
- Diffusing Capacity for Carbon Monoxide (DLCO): Measures how effectively carbon monoxide moves from the alveoli into the blood. It assesses the diffusion capacity of the lungs, which is reduced in diseases like emphysema and pulmonary fibrosis.
Understanding Which Test to Recommend
For the TMC Exam, you need to know which PFT is appropriate based on the patient’s symptoms and history. Use the following tips to guide your decision-making:
- Obstructive Diseases (e.g., COPD, Asthma): Focus on tests that assess flow rates (e.g., spirometry, flow-volume loops, MVV). Use PEFR or methacholine challenge test for asthma assessment.
- Restrictive Diseases (e.g., Pulmonary Fibrosis, Sarcoidosis): Prioritize tests that measure lung volumes (e.g., body plethysmograph, VC).
- Gas Exchange Abnormalities: Use DLCO to evaluate the ability of gases to diffuse across the alveolar membrane.
Note: By mastering these pulmonary function tests and understanding their clinical applications, you’ll be well-prepared to answer related questions on the TMC Exam and effectively evaluate patients’ respiratory status in a clinical setting.
Access our quiz with sample TMC practice questions and detailed explanations to help you master pulmonary function testing (PFT).
2. Know the Normal Values
Knowing normal values for pulmonary function testing (PFT) is essential for interpreting results and assessing a patient’s respiratory health. For the TMC Exam, you should be familiar with the standard reference ranges, as they help differentiate between normal, obstructive, and restrictive patterns.
Here is a quick guide to the most important PFT values to remember:
- FEV1 (Forced Expiratory Volume in 1 Second): > 80% of predicted. It indicates the amount of air a patient can forcefully exhale in the first second. Lower values suggest obstructive disease.
- FEV1/FVC Ratio (FEV1%): ≥ 70%. This ratio is crucial for distinguishing between obstructive and restrictive patterns. A decreased ratio indicates obstructive disease.
- FVC (Forced Vital Capacity): > 80% of predicted. It represents the total volume of air that can be forcefully exhaled after a full inspiration. Reduced values suggest restrictive lung disease.
- SVC (Slow Vital Capacity): > 80% of predicted. It is used to evaluate lung volume without the forced component, providing a baseline for restrictive lung disorders.
- RAW (Airway Resistance): 0.6–2.4 cmH2O/L/sec. It measures the resistance to airflow in the airways. Increased RAW is a sign of obstructive conditions, such as asthma or COPD.
- DLCO (Diffusing Capacity for Carbon Monoxide): 20–25 mL/CO/min/mmHg. It assesses the ability of gases to transfer from the alveoli into the bloodstream. Lower DLCO values indicate impaired gas exchange, as seen in diseases like emphysema and pulmonary fibrosis.
- PEFR (Peak Expiratory Flow Rate): 10 L/sec. Measures the highest flow rate achieved during a forced expiration. Lower PEFR values suggest obstruction or airway narrowing.
- Exhaled Carbon Monoxide (ExCO): < 7 ppm in nonsmokers. Elevated levels are often seen in smokers and patients with environmental exposure to pollutants.
When interpreting PFT results, comparing a patient’s values to these normal ranges helps identify whether the results are within the expected limits or if there’s an abnormality. Deviations from normal values can reveal the presence and severity of obstructive or restrictive lung diseases, guiding diagnosis and treatment planning.
For the TMC Exam, focus on understanding these normal values and what changes in each parameter indicate. For example, a low FEV1/FVC ratio points to an obstructive pattern, while a reduced FVC suggests restriction. Recognizing these patterns will help you accurately interpret PFT results and answer exam questions with confidence.

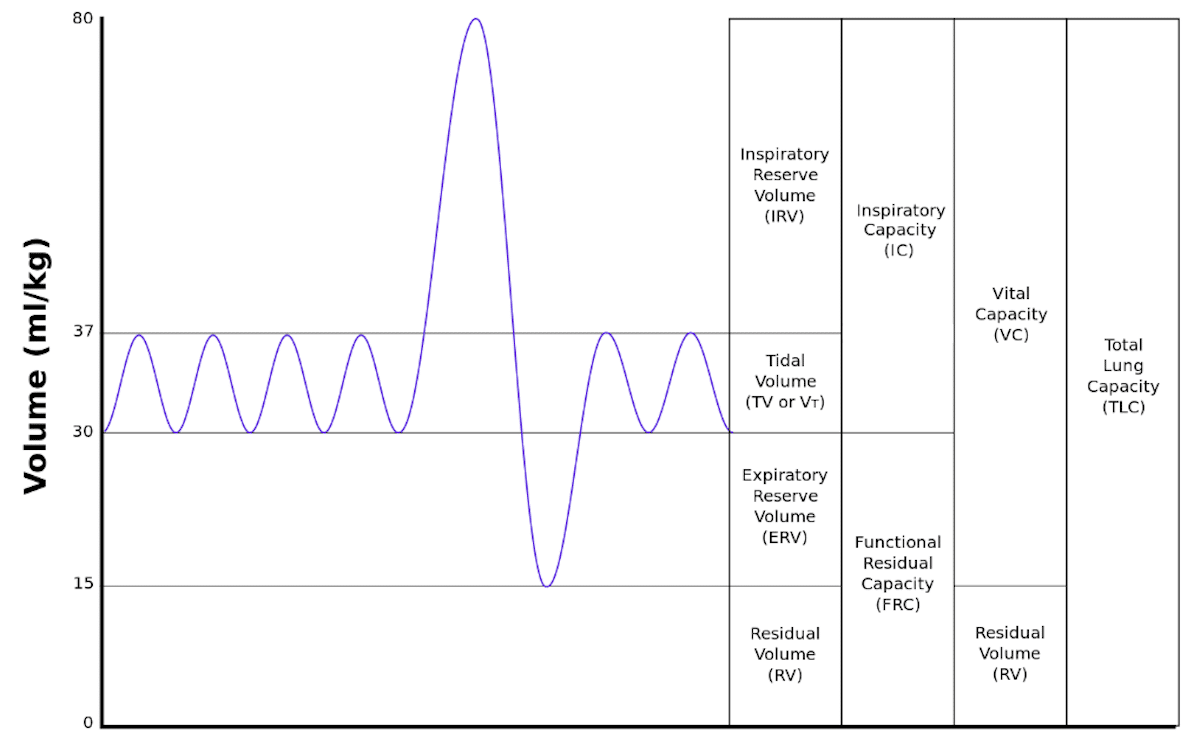

3. Use the Lung Box to Your Advantage
When it comes to tackling PFT questions on the TMC Exam, using the “Lung Box” can be a game-changer. This diagram serves as a visual aid that makes it easier to memorize and understand the different lung volumes and capacities, which is crucial for interpreting PFT results.
Drawing it out on your scratch paper before the exam starts will make it easy to reference throughout the test. This diagram simplifies complex concepts and helps you quickly identify relationships between different volumes and capacities, making it an invaluable tool for your PFT-related questions.
Lung Volumes
- Tidal Volume (VT): The volume of air inhaled and exhaled during normal, quiet breathing. It represents the baseline amount of air moved in and out of the lungs under resting conditions.
- Inspiratory Reserve Volume (IRV): The maximum volume of air that can be inhaled after a normal tidal volume inhalation. It measures the additional air that can be drawn into the lungs beyond a regular breath.
- Expiratory Reserve Volume (ERV): The maximum volume of air that can be exhaled after a normal tidal volume exhalation. It indicates the reserve air available for exhalation beyond a typical breath out.
- Residual Volume (RV): The volume of air remaining in the lungs after a complete and forceful exhalation. It represents the air that cannot be voluntarily expelled, maintaining alveolar patency.
Lung Capacities
- Inspiratory Capacity (IC): The maximum volume of air that can be inhaled after a normal tidal volume exhalation. It measures the capacity of the lungs to take in air during a deep breath.
- Functional Residual Capacity (FRC): The volume of air remaining in the lungs after a normal tidal volume exhalation. It indicates the amount of air left in the lungs that keeps them partially inflated at rest.
- Vital Capacity (VC): The maximum volume of air that can be exhaled after a full, deep inhalation. It measures the total amount of air a patient can move in and out of their lungs.
- Total Lung Capacity (TLC): The total volume of air the lungs can hold after a maximum inhalation. It represents the overall capacity of the lungs, including all volumes.
Reminder: Be sure to practice drawing the “Lung Box” until it becomes second nature, and use it to your advantage during the TMC Exam. With this tool, you’ll be well-prepared to tackle any PFT question that comes your way.
4. Understand Flow-Volume Loops
Flow-volume loops are graphical representations that show the flow of air during inspiration and expiration plotted against lung volume. They are an essential tool for evaluating lung function and can help identify whether a patient has an obstructive or restrictive lung disease.
For the TMC Exam, understanding how to interpret these loops is crucial, as you’re likely to see questions that require you to analyze a flow-volume loop tracing.
Why Flow-Volume Loops Are Important
Flow-volume loops visually display how air moves in and out of the lungs. By observing the shape and pattern of the loop, you can determine if a patient has normal lung function or a specific type of respiratory disease. This allows for a quick and accurate assessment of the patient’s condition.
A typical question on the TMC Exam might include an image of a flow-volume loop and ask you to identify if the patient has an obstructive or restrictive disease.
Here’s a simple guide to help you differentiate:
Restrictive Diseases
- Pattern: Tall and narrow loop.
- Shape: The loop appears “skinny” due to reduced lung volumes.
- Key Point: This pattern indicates that the patient has difficulty expanding their lungs, which is characteristic of restrictive conditions like pulmonary fibrosis or sarcoidosis.
Obstructive Diseases
- Pattern: Short and wide loop.
- Shape: The loop is “shortened” because of decreased expiratory flow rates.
- Key Point: This pattern suggests increased resistance to airflow, as seen in obstructive conditions like asthma, chronic bronchitis, or emphysema.
Note: Flow-volume loops are one of the most straightforward ways to visually assess lung function. By mastering the key patterns and understanding how each shape correlates with a specific respiratory condition, you’ll be prepared to accurately interpret these graphics on the TMC Exam.
5. Understand the FEV1/FVC Ratio
The FEV1/FVC ratio is one of the most critical values for determining if a patient has an obstructive lung disease. Understanding how to interpret this ratio is essential for both the TMC Exam and clinical practice, as it provides a quick and accurate way to assess lung function.
Here is an overview of the components that make up this ratio:
- FEV1 (Forced Expiratory Volume in 1 Second): The volume of air a patient can exhale during the first second of a forced vital capacity maneuver.
- FVC (Forced Vital Capacity): The total amount of air that can be forcefully exhaled after a maximal inspiration.
The FEV1/FVC ratio represents the percentage of the FVC that is expelled during the first second of the maneuver. It’s a crucial indicator for evaluating airflow and identifying the presence of obstructive lung disease.
For the TMC Exam, if you need to determine whether a patient has an obstructive lung disease, start by analyzing their FEV1/FVC ratio. This ratio is the most reliable marker for airflow limitation and provides a clear distinction between normal and obstructive patterns.
In healthy individuals, at least 70% of the FVC should be exhaled within the first second of the maneuver. This means that a patient’s FEV1/FVC ratio should be ≥ 70% to indicate normal lung function. A ratio of less than 70% is a hallmark sign of obstructive lung disease.
Understanding the Clinical Significance
When a patient’s FEV1/FVC ratio is reduced, it indicates a problem with airflow limitation. In obstructive lung diseases, the airways are narrowed or blocked, making it difficult for the patient to expel air quickly.
As a result, a smaller proportion of the total lung volume is exhaled in the first second, causing the FEV1/FVC ratio to drop below 70%. If the ratio is normal or elevated, consider a restrictive lung disease or normal lung function.
Knowing how to interpret the FEV1/FVC ratio is a must-have skill for the TMC Exam. If the exam question requires you to evaluate a patient’s PFT results, the first step should always be to check their FEV1/FVC ratio.
Remember: A decreased ratio (less than 70%) confirms an obstructive lung disease, allowing you to answer confidently and correctly.
Unlock insider strategies and proven exam hacks to master key concepts, avoid common pitfalls, and pass the exam on your first (or next) attempt.
Final Thoughts
The PFT section of the TMC Exam can be complex, but with a clear understanding of test results, normal values, and interpretation techniques, you can master this topic.
Focus on the indications and contraindications for each test, and be prepared to analyze various spirometry and lung volume measurements.
If you found these tips helpful, explore our TMC Exam Hacks video course for more in-depth strategies, expert advice, and proven insights to help you succeed. Best of luck on your journey to becoming a registered respiratory therapist (RRT).
Written by:
John Landry is a registered respiratory therapist from Memphis, TN, and has a bachelor's degree in kinesiology. He enjoys using evidence-based research to help others breathe easier and live a healthier life.
